China Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus wholesale

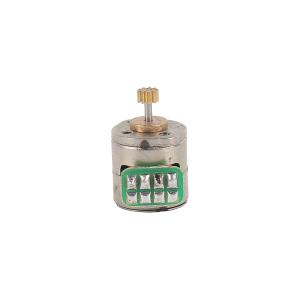

Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus

Name: Long Life 3V DC 8mm Diameter Micro Stepper Motor 2 Phase 4 Wire for Camera Rotation Focus
Brand: Vic-Tech
Price: 2 USD

Ask Latest Price

Video Channel

Model Number :VSM08133

Brand Name :Vic-Tech

Place of Origin :Jiangsu, China

Certification :RoHS

MOQ :1

Price :$2-5

Phase :2

Type :Permanent Magnet

Current :150 mA

Voltage :3.3V

Resistance :40Ω±7%

Inductance :4.0mH25%

Exciting method :2-2 Phase exciting

Exciting mode :Bipolar

Rotation :CW CCW

Outer diameter :8MM

Body length :8.2MM

Shaft diameter :1MM

Step angle :18 degrees

Starting frequency :1000 PPS min.

Slewing frequency :1200 PPS min.

Contact Now

Add to Cart

View Product Description

Product Overview

Long Life 3V Dc Diameter 8mm Dc mini stepper motor 2 Phase 4 Wire Micro Stepper Motor for Camera Rotation Focus

VSM08133 is a precision micro stepping motor with 8MM outer diameter, 8.2MM body length, 1MM outer shaft diameter, and 4.1mm and 3.5mm output shaft lengths. The shaft length can be changed as needed. It can be equipped with gears, pulleys, Corresponding output devices, such as worm and screw, can be customized according to customer needs The basic step angle of the motor is 18 degrees, and the motor runs 20 steps per week. Due to its small size, high precision and easy control, this miniature stepping motor is widely used in cameras, optical instruments, lenses, flashlights, precision medical equipment, automatic door locks and other fields. The input part of the motor is a PCB and a connecting wire, but it can be changed into a connecting wire needle, FPC and other forms according to customer needs. Mounting brackets can be replaced according to customer requirements. Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us!

FEATURES AT A GLANCE

PRODUCT SPECIFICATIONS

PRODUCT NAME	8 MM MICRO STEPPER MOTOR
MODEL	VSM08133
MAX. STARTING FREQUENCY	1000 PPS min. (AT 3.3 V DC)
MAX. SLEWING FREQUENCY	1200 PPS min. (AT 3.3 V DC)
PULL IN TORQUE	0.8gf-cm min. (AT 900PPS , 3.3V DC)
PULL OUT TORQUE	1.0gf-cm min. (AT 900 PPS , 3.3V DC)
INSULATION CLASS	CLASS E FOR COILS
INSULATION STRENGTH	3.0mA (max.)100V AC FOR ONE SECOND
INSULATION RESISTENCE	1MΩ (DC 100V)
OPERATING TEMPERATURE RANGE	-30~+70 ℃
OEM & ODM SERVICE	AVAILABLE
