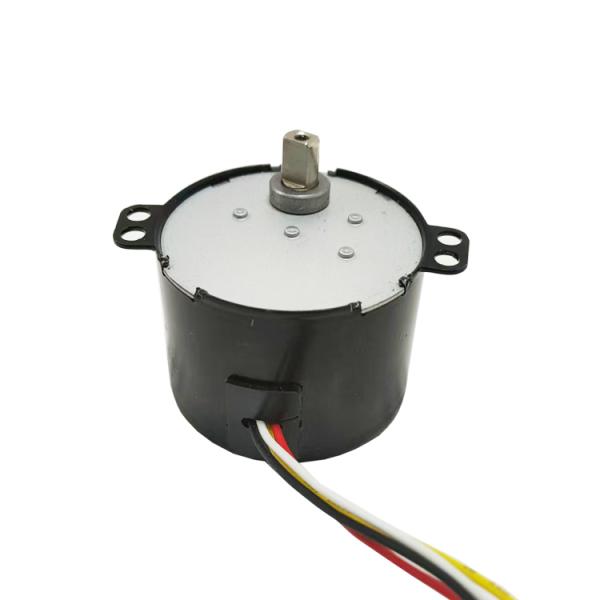

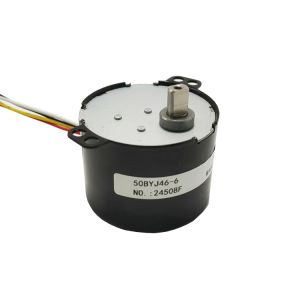

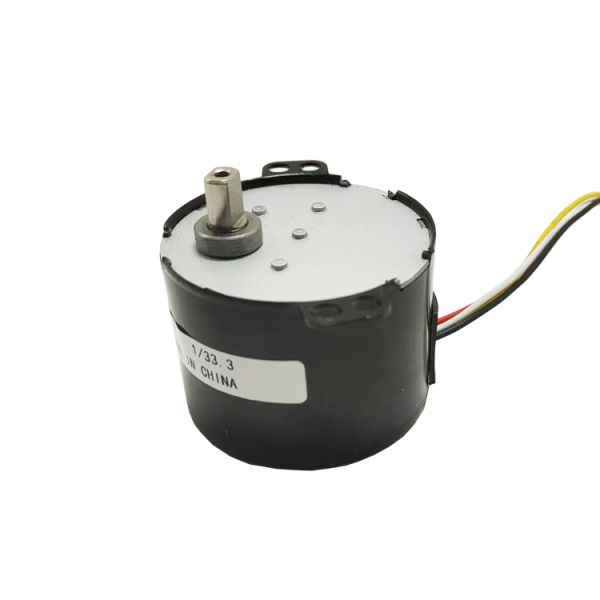

This motor is a 50mm diameter high torque motor with a body thickness of 38mm and an output shaft height of 11.7mm. The shaft diameter is flat and can be customized according to customer needs
Our team has more than 10 years of experience in stepping motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!
Attention: Your project load cannot exceed the rated load, otherwise the motor current will increase, the motor working temperature will rise, and after a period of time, the gears will wear out, the circuit will be burned, and the motor will be damaged and unable to continue working.
| Product Name | 50mm stepper motor |
| Model | 50BYJ46-6 |
| Resistance | 23 mΩ±7%/phase |
| Pull-in torque | 100 pps ,882mNm. (AT 15V DC) |
| Pull-in torque | 206 pps ,637mNm. (AT 15V DC) |
| Detent Torque | 147mN.m |
| Operating Temperature Range | -0~+55 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
The regular models are shown in the figure, and the special sizes can be customized.
