SM15-80L-T Metal Slide Linear Stepper Motor, 15mm Diameter, 1kg Thrust

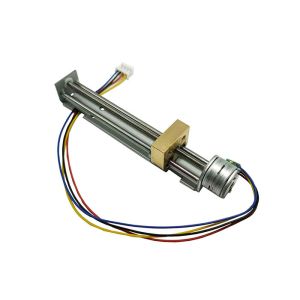

This is a 15mm linear motor. It features a copper slide and two linear bearings, significantly improving slide stability.
A plastic slide is also available.
The motor has an 18-degree step angle, with the slide rotating once every 20 steps. The step size is 0.025mm.
It uses a traditional M3*0.5P threaded lead screw shaft, so the slide moves one pitch (0.5mm) for each motor rotation.
This motor has an 80mm travel range.
This SM15-80L-T motor is ideal for precise linear control, with a slide thrust of up to 1kg (over 10N).
Mechanical Dimension:MM
| Model No. | SM15-80L-T |
| Current Per Phase | 400 mA/Phase |
| Coil Resitance | 15±10% ohm/PHASE(20℃) |
| Rated voltage | 6 V |
| No. of phases | 2 Phases |
| Step Angle | 18 degrees |
| Excitation Method | 2 Phases Excitation |
| Drive Mode | Bipolar Drive |
| Pull-out Thrust | More Than 230 g AT 500PPS |
| Max Response frequency | More Than 1200 PPS |
| Max Starting Frequency | More Than 900 PPS |
| Insulation Class | CLASS E FOR COILS |
| Insulation Strength | 100 V AC FOR ONE SECOND |
| Insulation Resistance | 50mΩ DC 500 V |
| Operating Temperature | -0~55℃ |
| Motor Surface Temperature | 80℃ or less |
2) Optical instruments
3) Lenses
4) Precision medical devices
5) Automatic door locks
Product Detail Presentation
The motor input part of the FPC, but can according to the customer demand can be changed to a connecting line needle, PCB and other forms.
